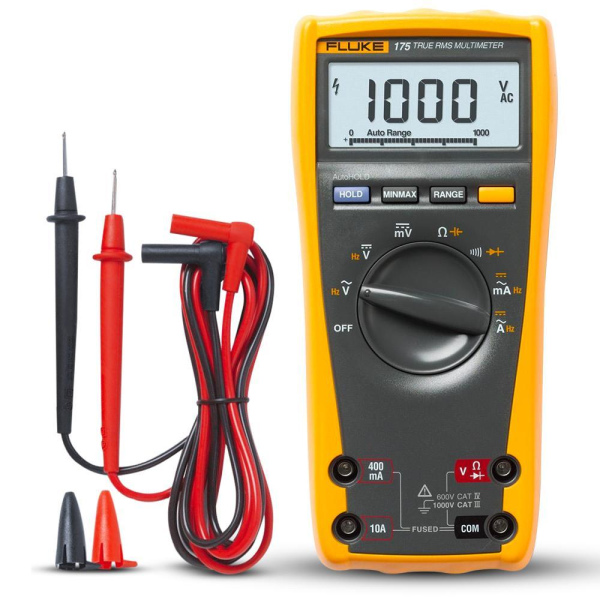

Provides all the general-purpose features needed by professional technicians, which makes this True RMS digital multimeter ideal for identifying basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode.



Specifications:

Voltage DC:

Accuracy: ±(0.15% + 2)

Max. resolution: 0.1 mV

Maximum: 1000 V

Voltage AC:

Accuracy: ±(1.0% + 3)

Max. resolution: 0.1 mV

Maximum: 1000 V

Current DC:

Accuracy: ±(1.0% + 3)

Max. resolution: 0.01 mA

Maximum: 10 A

Current AC:

Accuracy: ±(1.5% + 3)

Max. resolution: 0.01 mA

Maximum: 10 A

Resistance:

Accuracy: ±(0.9% + 1)

Max. resolution: 0.1 Ω

Maximum: 50 MΩ

Capacitance:

Accuracy: ±(1.2% + 2)

Max. resolution: 1 nF

Maximum: 10,000 µF

Frequency:

Accuracy: ±(0.1% + 1)

Max. resolution: 0.01 Hz

Maximum: 100 kHz

Operating temperature: -10°C to +50°C

Storage temperature: -30°C to +60°C

Humidity (without condensation):

0% – 90% (0°C – 35°C)

0% – 70% (35°C – 50°C)

Overvoltage category:

EN 61010–1 to 1000 V CAT III

EN 61010–1 to 600 V CAT IV

Agency approvals: UL, CSA, TÜV listed and VDE Pending

Battery life: ~200 hours typical, without backlight

Dimensions (L x W x H): 185mm x 90mm x 43mm

Weight 0.420kg
